一、动力参数
系统参数 System Specification | |||

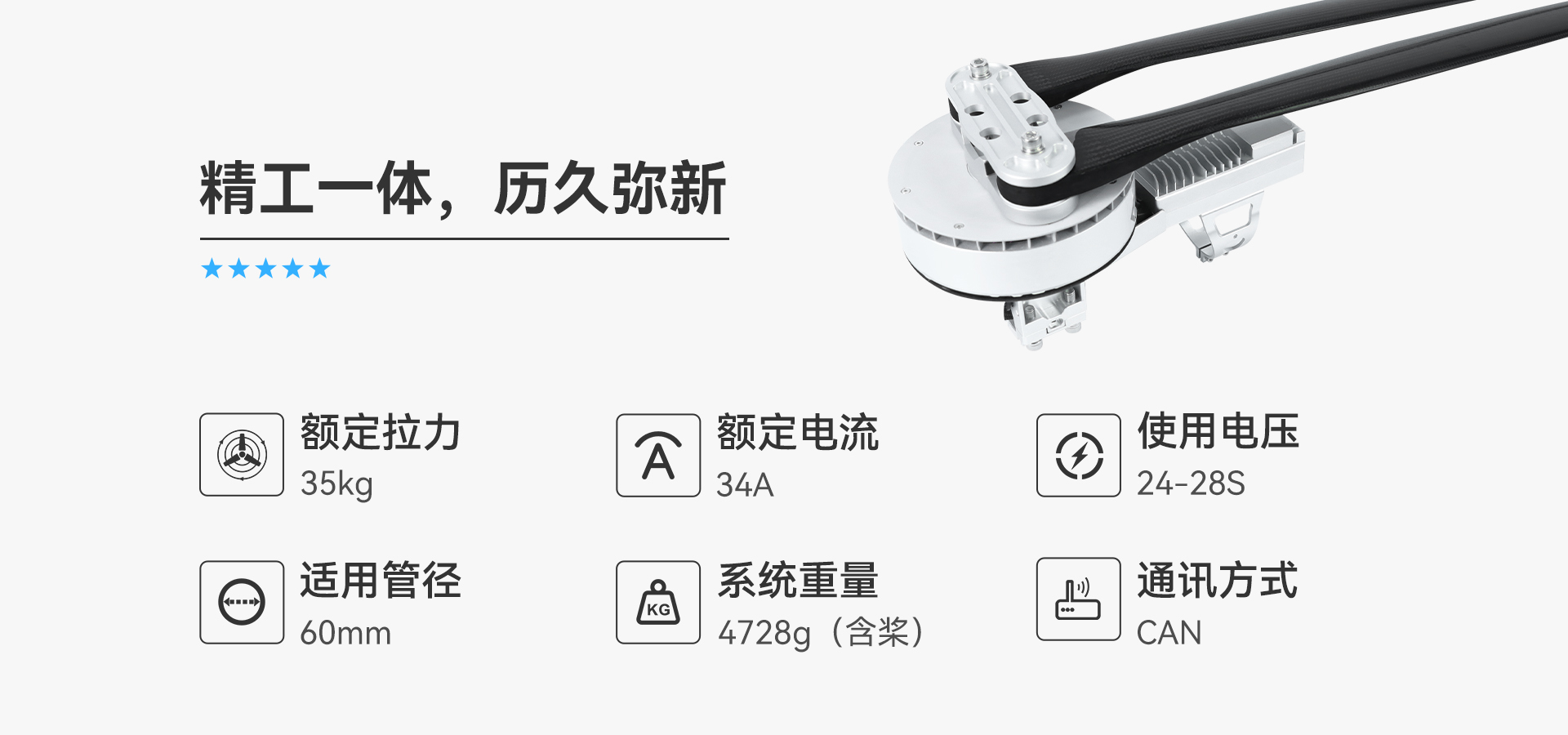

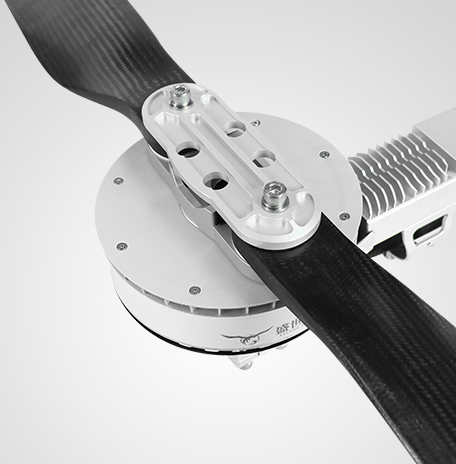

型号名称 Product | S15 | 套装配置 Kit Includes | S15电机 +28S250A电调+TX63桨叶 |
最大拉力 Max thrust | 72kg | 单轴额定拉力 Recommended takeoff weight | 35kg |
额定拉力力效 Efficiency at recommended takeoff weight | （35kg）8.3g/w | 适配电池 Compatible Battery | 24S~28S(LiPo) |
适用碳管直径 Tube outer diameter | 60mm | 整机含引线重量 Weight （with cable and Props） | 4728±2%g（含桨叶） |
线长 Signal line length | 1600±5mm | 线材规格 Cable specification | 电源线：8#AWG红黑 信号线：5P带屏蔽线 |
使用环境温度 Operating temperature | -20℃～50℃ | 防护等级 Ingress Protection | IP36 |
电机参数Motor Specification | |||

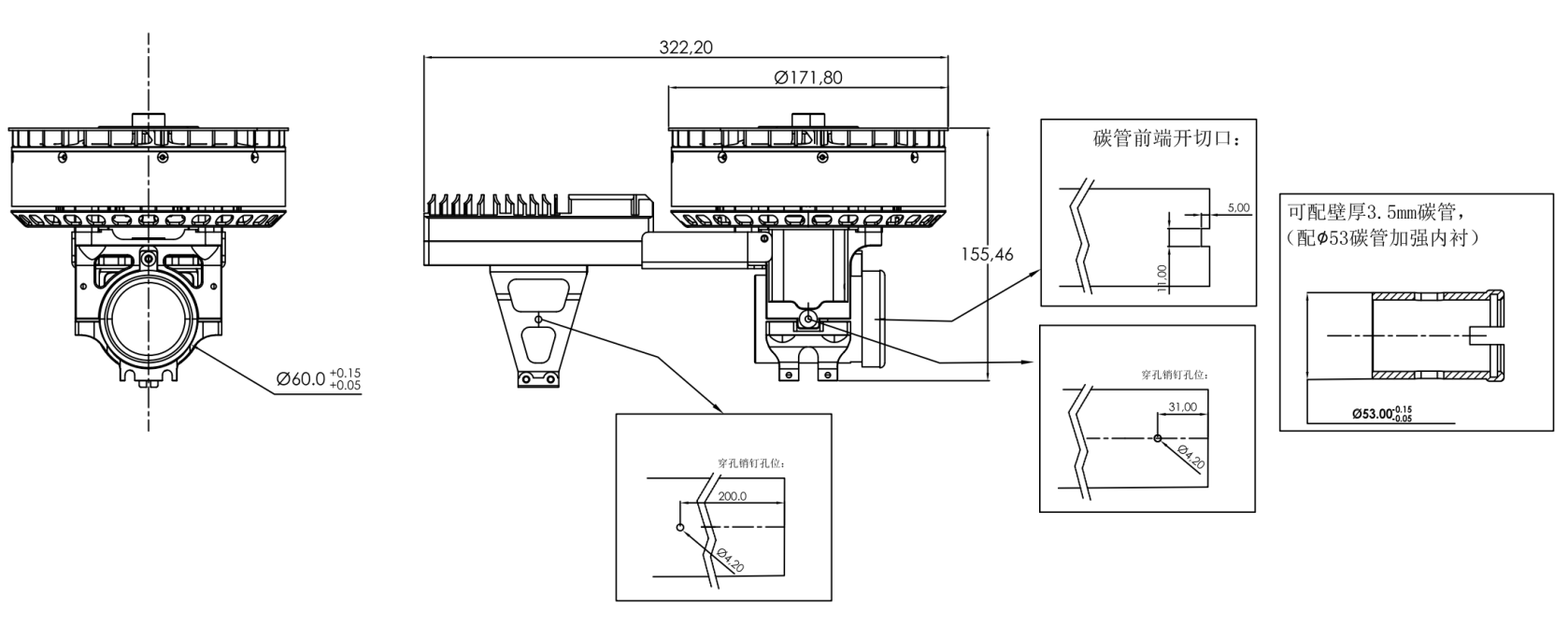

电机尺寸 Tor size | Φ172*64mm | KV（RPM/V） | 35 |
电调参数ESC Specification | |||
油门行程 Throttle travel | 1050-1950us（固定） | 最大电压 Max voltage | 120V |
通讯方式 Communication | CAN | 最大持续电流 Max Continuous Current | 80A（开放环境且温度≤60℃） |
控制方式 Control Method | PWM/CAN | 最大电流 Peak current | 150A（开放环境且温度≤60℃） |
桨叶参数Propeller Specification | |||

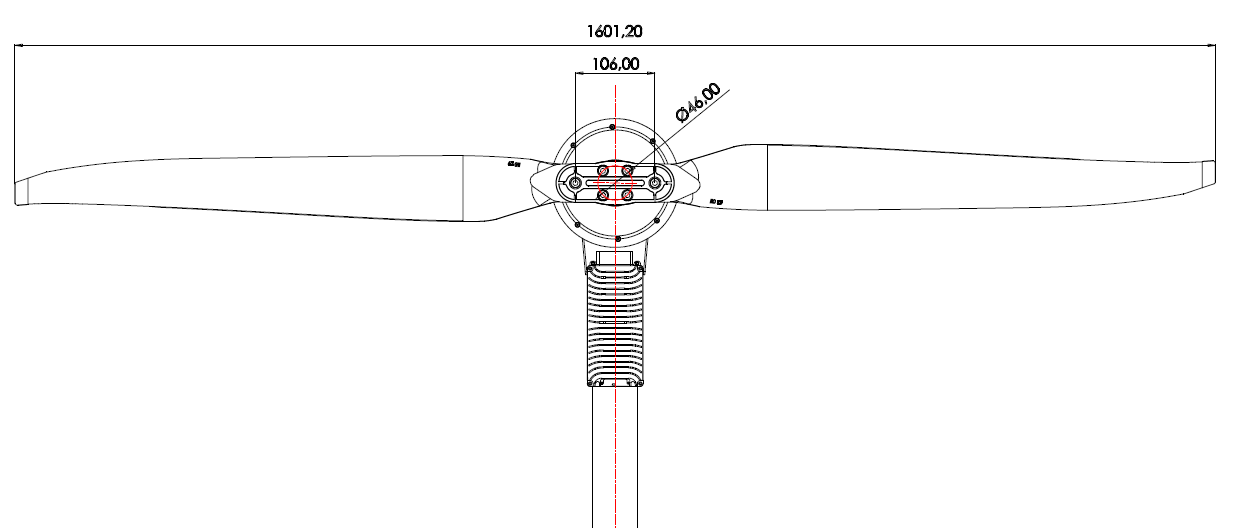

规格型号 Propeller | TX63 | 孔距 Bolt circle | Φ46mm-4*M6 |
二、测试数据
S15 KV35+28SFOC250A+TX63 | 环境温度 Ambient Temperature | 32℃ | ||||
Throttle（%） 油门点（%） | Thrust A (gf) 拉力 (gf) | Speed（RPM） 转速-RPM | Voltage A (V) 电压(V) | Current A (A) 电流(A) | Motor Efficiency A (%) 电机效率 (%) | Overall Efficiency A (gf/W) 综合力效(gf/W) |
30 | 11.152 | 984 | 100.08 | 9.15 | 83.5 | 12.2 |
35 | 15.455 | 1141 | 99.96 | 14.08 | 85.7 | 11.0 |
40 | 19.85 | 1284 | 99.93 | 19.66 | 87.1 | 10.1 |
45 | 24.835 | 1416 | 99.97 | 26.32 | 87.6 | 9.4 |
50 | 28.856 | 1555 | 99.86 | 33.87 | 88.8 | 8.5 |
55 | 34.093 | 1657 | 99.96 | 42.92 | 87.9 | 7.9 |
60 | 39.119 | 1763 | 99.86 | 52.03 | 88.0 | 7.5 |
65 | 44.184 | 1862 | 99.80 | 61.82 | 87.9 | 7.2 |
70 | 47.963 | 1958 | 99.79 | 72.78 | 87.2 | 6.6 |
75 | 53.41 | 2045 | 99.75 | 84.87 | 86.3 | 6.3 |
80 | 57.646 | 2129 | 99.76 | 96.28 | 85.2 | 6.0 |
85 | 62.517 | 2204 | 99.72 | 110.93 | 83.4 | 5.7 |
90 | 66.839 | 2276 | 99.60 | 128.17 | 80.6 | 5.2 |
95 | 72.772 | 2333 | 99.51 | 148.71 | 76.3 | 4.9 |
100 | 72.62 | 2332 | 99.53 | 147.68 | 75.9 | 4.8 |
