一、动力参数

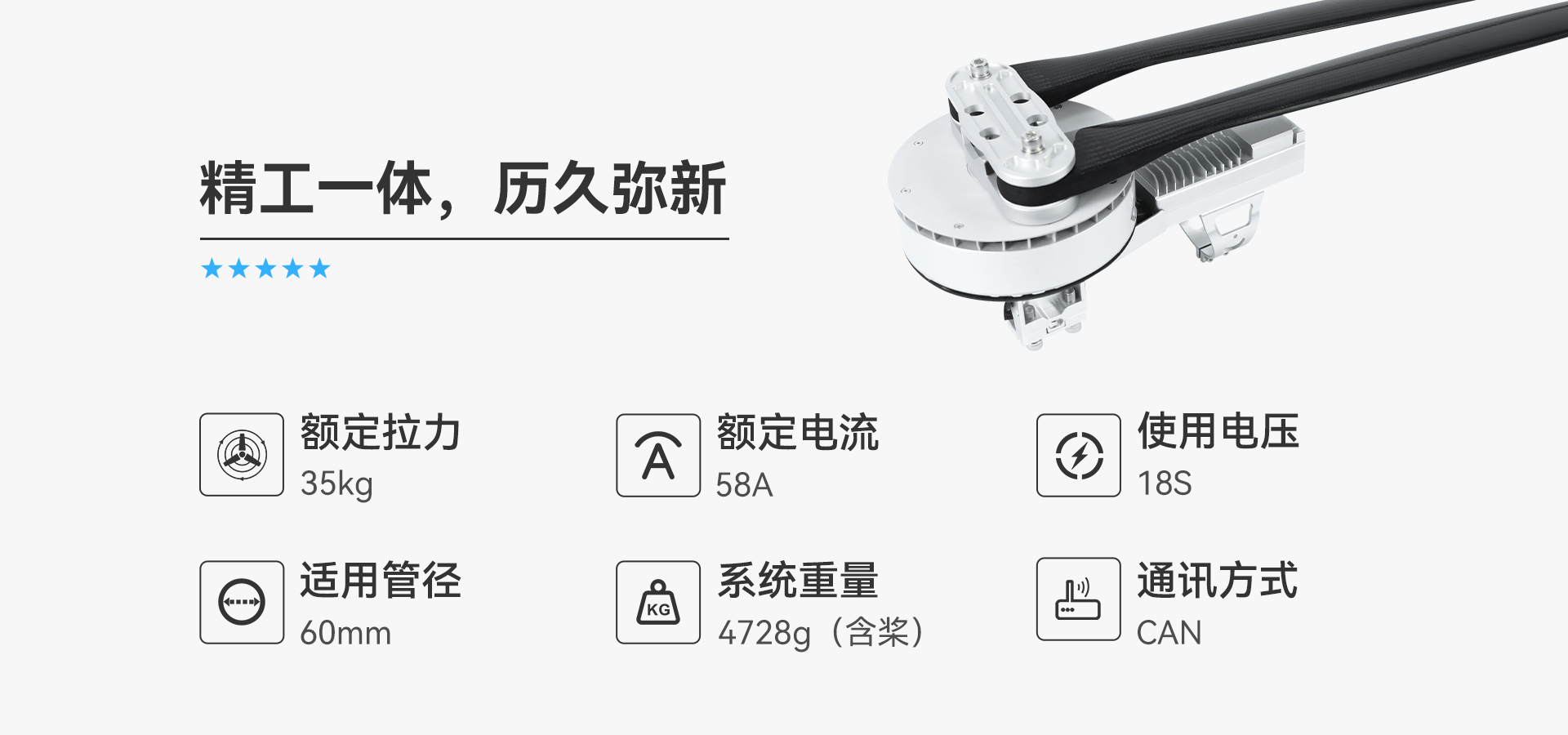

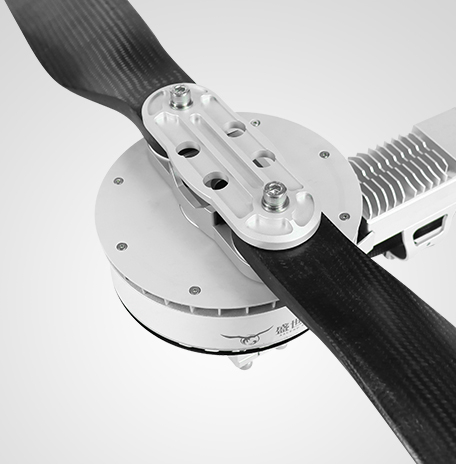

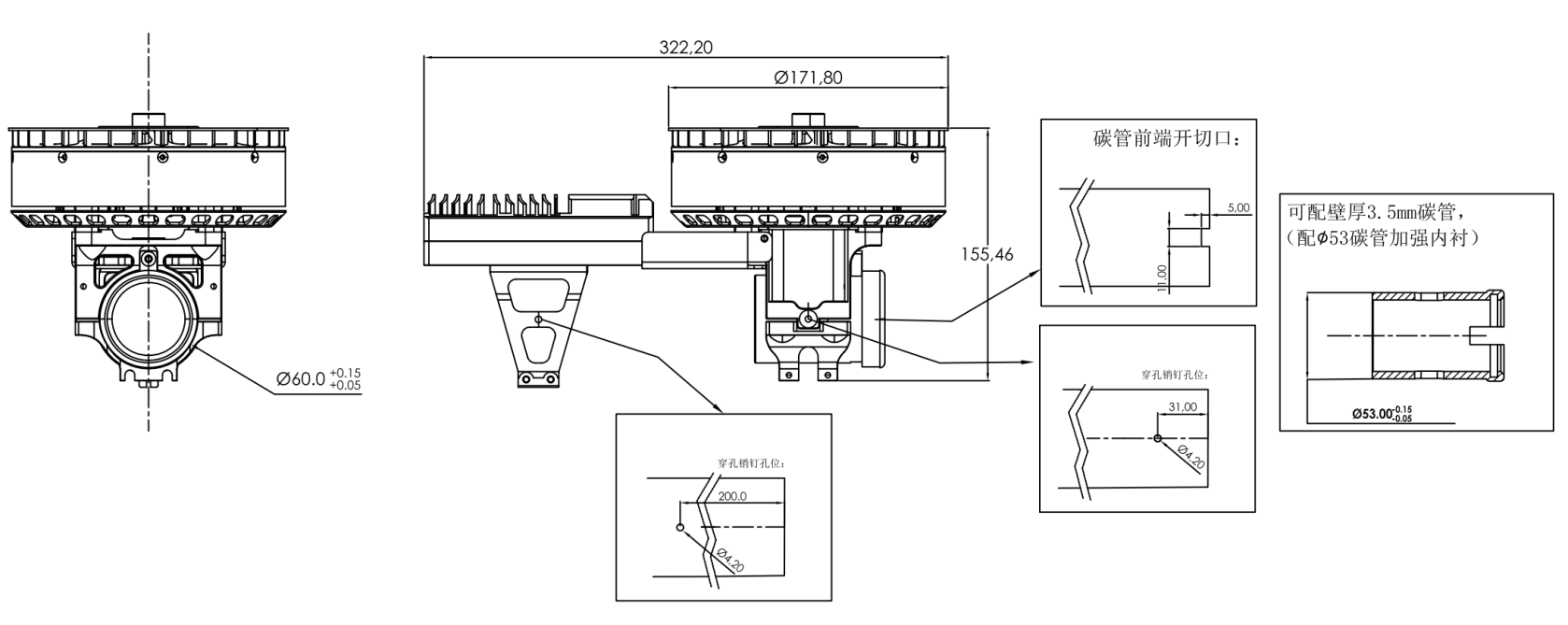

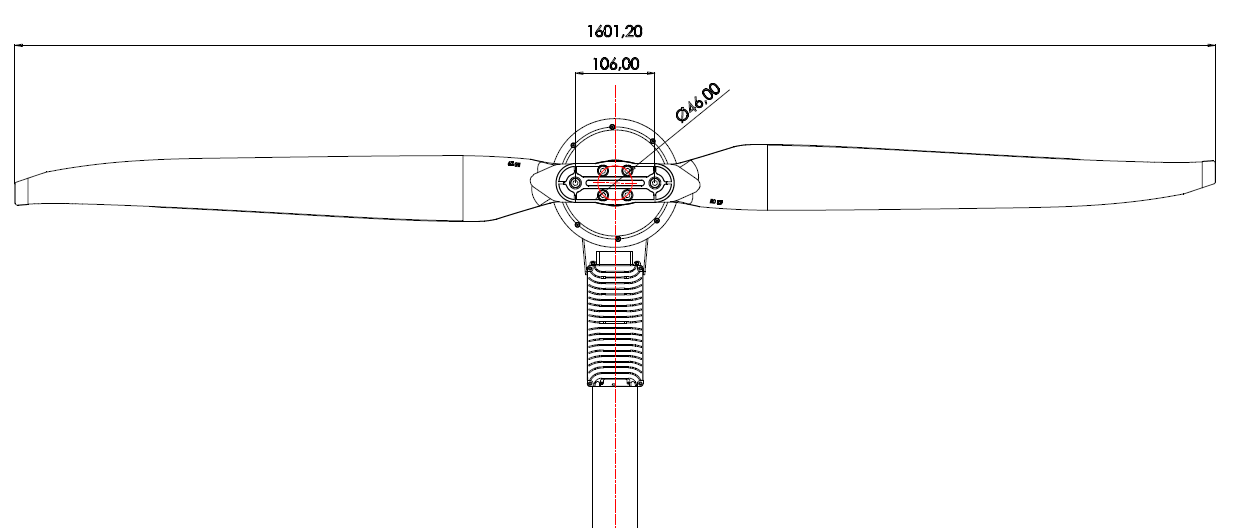

系统参数 System Specification | |||
型号名称 Product | S15 | 套装配置 Kit Includes | S15电机 +18S300A电调+TX63桨叶 |
最大拉力 Max thrust | 71kg | 单轴额定拉力 Recommended takeoff weight | 35kg |
额定拉力力效 Efficiency at recommended takeoff weight | （35kg）7.8g/w | 适配电池 Compatible Battery | 18S(LiPo) |
适用碳管直径 Tube outer diameter | 60mm | 整机含引线重量 Weight （with cable and Props） | 4728±2%g（含桨叶） |
线长 Signal line length | 1600±5mm | 线材规格 Cable specification | 电源线：8#AWG红黑 信号线：5P带屏蔽线 |
使用环境温度 Operating temperature | -20℃～50℃ | 防护等级 Ingress Protection | IP36 |
电机参数Motor Specification | |||
电机尺寸 Tor size | Φ172*64mm | KV（RPM/V） | 47 |
电调参数ESC Specification | |||
油门行程 Throttle travel | 1050-1950us（固定） | 最大电压 Max voltage | 120V |
通讯方式 Communication | CAN | 最大持续电流 Max Continuous Current | 100A（开放环境且温度≤60℃） |
控制方式 Control Method | PWM/CAN | 最大电流 Peak current | 210A（开放环境且温度≤60℃） |
桨叶参数Propeller Specification | |||
规格型号 Propeller | TX63 | 孔距 Bolt circle | Φ46mm-4*M6 |
二、测试数据
S15 KV47+18SFOC300A+TX63 | 环境温度 Ambient Temperature | 32℃ | ||||
Throttle（%） 油门点（%） | Thrust A (gf) 拉力 (gf) | Speed（RPM） 转速-RPM | Voltage A (V) 电压(V) | Current A (A) 电流(A) | Motor Efficiency A (%) 电机效率 (%) | Overall Efficiency A (gf/W) 综合力效(gf/W) |
30 | 10.06 | 999 | 71.00 | 13.28 | 83.4 | 12.3 |
35 | 15.34 | 1,181 | 71.00 | 21.46 | 85.7 | 11.1 |
40 | 20.54 | 1,340 | 71.30 | 32.48 | 87.1 | 10 |
45 | 25.55 | 1,488 | 71.02 | 44.17 | 87.5 | 9.4 |
50 | 30.99 | 1,619 | 70.99 | 58.23 | 88.9 | 8.4 |
55 | 35.81 | 1,743 | 70.88 | 72.44 | 87.8 | 7.8 |
60 | 41.24 | 1,852 | 70.66 | 89.08 | 88 | 7.5 |
65 | 46.11 | 1,950 | 70.31 | 106.66 | 87 | 7. |
70 | 50.82 | 2,045 | 70.20 | 123.75 | 87.1 | 6.5 |
75 | 56.51 | 2,131 | 70.29 | 146.41 | 86.2 | 6.2 |
80 | 61.07 | 2,210 | 70.02 | 166.18 | 85.3 | 6.0 |
85 | 65.64 | 2,278 | 69.86 | 189.45 | 83.3 | 5.7 |
90 | 69.80 | 2,339 | 69.85 | 211.53 | 80.5 | 5.1 |
95 | 70.40 | 2,341 | 69.80 | 212.43 | 76.2 | 4.8 |
100 | 70.80 | 2,341 | 69.83 | 211.93 | 75.6 | 4.8 |
